QUINT-PS-3x400-500AC/24DC/30

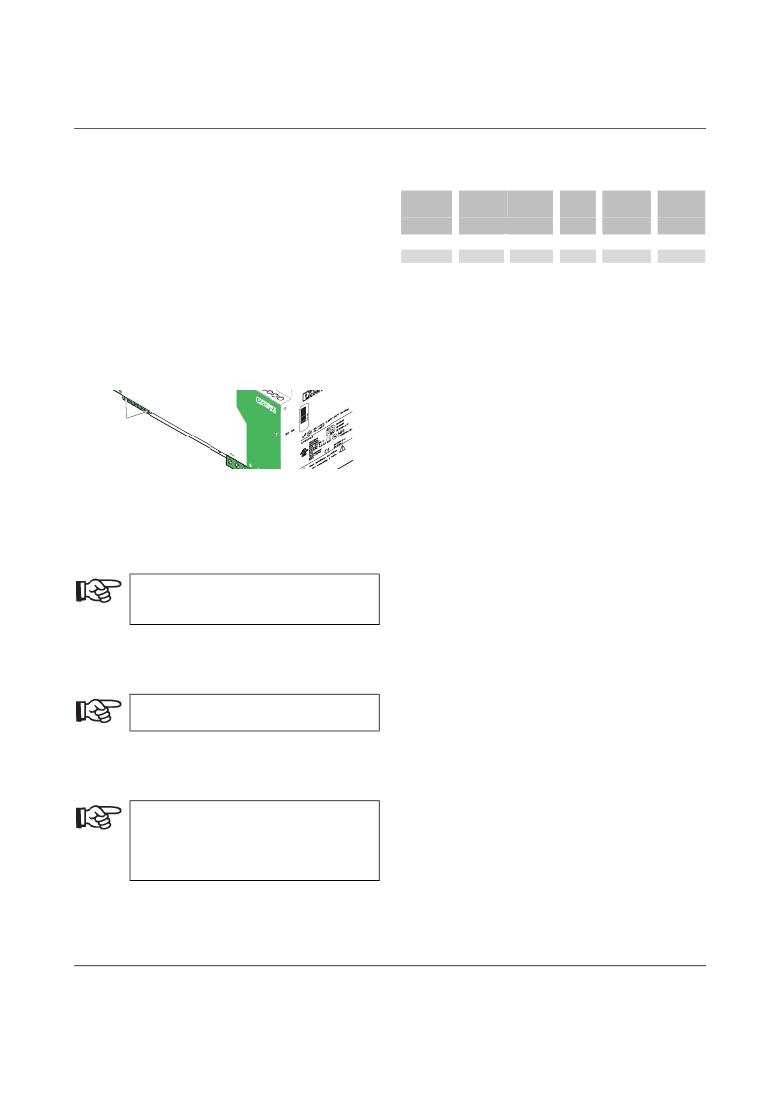

Connection of the Connecting Cable
Use a screwdriver with the correct blade width for wiring.
The cable cross sections listed in the table on the right can
be connected.
Solid
Stranded
[mm 2 ]
AWG
Torque
[Nm]
Stripping
Length
[mm]
Input
Output
Signal
0.2...6
0.5...16
0.5...16
0.2...4
0.5...10
0.5...10
25...10
20...6
20...6
0.5...0.6
1.2...1.5
1.2...1.5
8 mm
10 mm
10 mm
3A
L 1 40
L2 -500
For reliable and safe-to-touch connections, strip the cable
ends according to the table.
Input (1)
The 3 x 400...500 V AC connection is made using the
Input
L1, L2, L3, and 5 screw connections.
C
0
V
L3
22 djus
8,5
1
A
,5-2 t
V
13
14
DC
OK
O C
Figure 8
Input
D
K
Ou
tp
ut
DC
24
V
30
A
Fuses
Three external thermomagnetic fuses are required to
protect the device. Even in the event of a phase failure,
continuous operation is ensured with nominal load.
If an external fuse is blown, this is most
probably due to a device fault. In this case, the
device should be checked in the factory.
Recommended Backup Fuse
3 x circuit breaker 6 A, 10 A or 16 A, Characteristic B
(or equivalent).
A suitable fuse should be provided for DC
applications.
Protecting the Primary Side
The device must be installed according to the specifications
of EN 60950.
It must be possible to switch off the device
using a suitable disconnecting device outside
the power supply.
For example, primary side line protection could
be used.
100035_04_en
PHOENIX CONTACT
8
